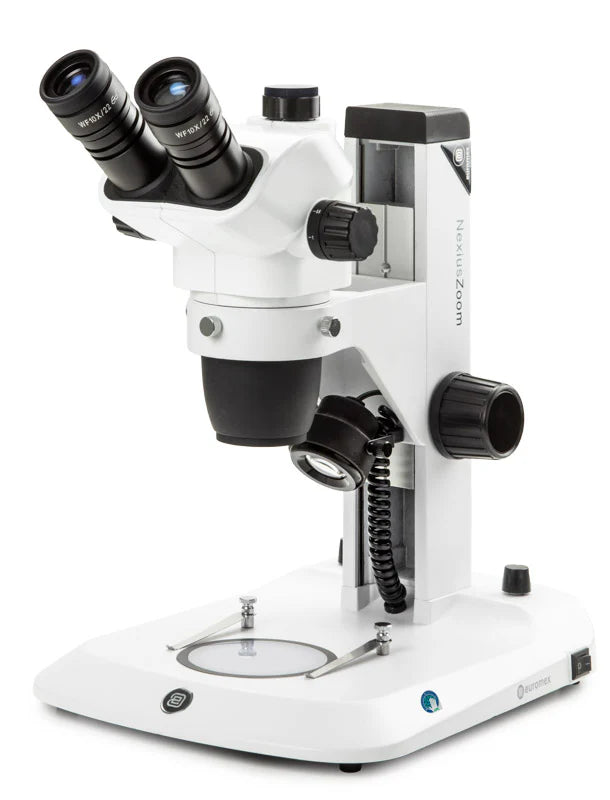

Euromex NexiusZoom EVO stereo microscopes allow you to examine your sample with great precision and generate three-dimensional images that facilitate your most demanding observations in microscopy applications. These high-zoom microscopes are perfect for the analysis of all types of material surfaces or for observing and preparing biological samples.
NexiusZoom EVO stereo microscopes are supplied with a wide variety of stands, with or without LED illumination. Ideal for all types of educational and laboratory applications. With additional eyepieces and objective lenses, a magnification range of 3.3x to 220x can be achieved.
EYE CLOSURES
Pair of HWF10x/23mm widefield eyepieces. With integrated ±5 diopter adjustment.
HEAD
Binocular head with 45° inclined eyepiece tubes. Adjustable interpupillary distance between 54 and 75 mm.
AIM
Zoom lens (1:8.4) with magnification factor between 0.65x and 5.5x, field of view between 35 mm. and 4.2 mm. Working distance 110 mm.
Auxiliary lenses available in 0.3x, 0.5x, 0.75x, 1.5x and 2.0x (check the accessories section for compatibility with different stands). All optical components have anti-mold treatment and anti-reflection coating treatment for maximum light transmission.
INCREASES
Working distance and field of view with the eyepieces supplied in the standard equipment HWF10x/23 mm.
EYE CLOSURES
Pair of HWF10x/23mm widefield eyepieces. With integrated ±5 diopter adjustment.
HEAD
Binocular head with 45° inclined eyepiece tubes. Adjustable interpupillary distance between 54 and 75 mm.
AIM
Zoom lens (1:8.4) with magnification factor between 0.65x and 5.5x, field of view between 35 mm. and 4.2 mm. Working distance 110 mm.
Auxiliary lenses available in 0.3x, 0.5x, 0.75x, 1.5x and 2.0x (check the accessories section for compatibility with different stands). All optical components have anti-mold treatment and anti-reflection coating treatment for maximum light transmission.
INCREASES
Working distance and field of view with the eyepieces supplied in the standard equipment HWF10x/23 mm.
| Zoom |
Objective 1x DT: 110 mm |
0.3x lens DT: 287 mm |
0.5x lens DT: 165 mm |
0.75x lens DT: 120 mm |
1.5x lens DT: 45 mm |
2x lens DT: 30 mm |
||||||
|
Increase Total |
Field of vision |
Increase Total |
Field of vision |
Increase Total |
Field of vision |
Increase Total |
Field of vision |
Increase Total |
Field of vision |
Increase Total |
Field of vision | |
| 0.65 | 6.5 | 35.4 | 1.95 | 120.0 | 3.35 | 71.0 | 4.9 | 47.0 | 9.8 | 24.0 | 13.0 | 17.7 |
| 0.7 | 7.0 | 32.9 | 2.1 | 110.0 | 3.5 | 66.0 | 5.3 | 44.0 | 10.5 | 22.0 | 14.0 | 16.4 |
| 0.8 | 8.0 | 28.8 | 2.4 | 96.0 | 4.0 | 58.0 | 6.0 | 38.0 | 12.0 | 19.0 | 16.0 | 14.4 |
| 1.0 | 10.0 | 23.0 | 3.0 | 77.0 | 5.0 | 46.0 | 7.5 | 31.0 | 15.0 | 15.3 | 20.0 | 11.5 |
| 1.5 | 15.0 | 15.3 | 4.5 | 51.0 | 7.5 | 31.0 | 11.3 | 20.0 | 22.5 | 10.2 | 30.0 | 7.7 |
| 2.0 | 20.0 | 11.5 | 6.0 | 38.0 | 10.0 | 23.0 | 15.0 | 15.0 | 30.0 | 7.7 | 40.0 | 5.8 |
| 3.0 | 30.0 | 7.7 | 9.0 | 26.0 | 15.0 | 15.0 | 22.5 | 10.0 | 45.0 | 5.1 | 60.0 | 3.8 |
| 4.0 | 40.0 | 5.8 | 12.0 | 19.0 | 20.0 | 12.0 | 30.0 | 7.7 | 60.0 | 3.8 | 80.0 | 2.9 |
| 4.5 | 45.0 | 5.1 | 13.5 | 17.0 | 22.5 | 10.0 | 33.8 | 6.8 | 67.5 | 3.4 | 90.0 | 2.6 |
| 5.5 | 55.00 | 4.2 | 16.5 | 14.0 | 27.5 | 8.4 | 41.3 | 5.6 | 82.5 | 2.8 | 110.0 | 2.1 |
